Patrol Verification Support
Programming Patrol Points
Programming Patrol Points can be carried out by using the Eidos Tag Programmer App on an Android phone with NFC capability or using the EIDOS NFC Reader and web browser on a PC.
Programming with the App
Step 1
Download the app using the browser on the phone (contact VeriFi for the current version).
Step 2

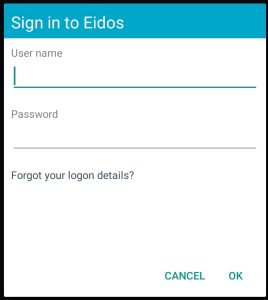

Once installed, log in using your Username & Password.
Step 3

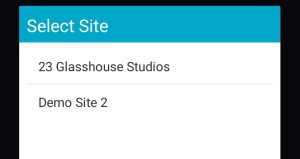

Select the site.
Step 4

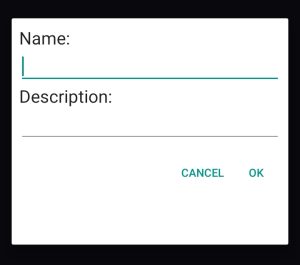

Scan a point and enter the following details:
Name: i.e. Kitchen
Description: i.e. Located on door frame.
Programming on a Desktop PC
Step 1
To programme on a desktop PC, you will require the EIDOS NFC Reader (see fig 12.1).

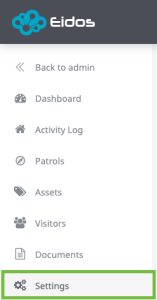

Go to ‘Settings’ (see fig 12.2)
Step 2

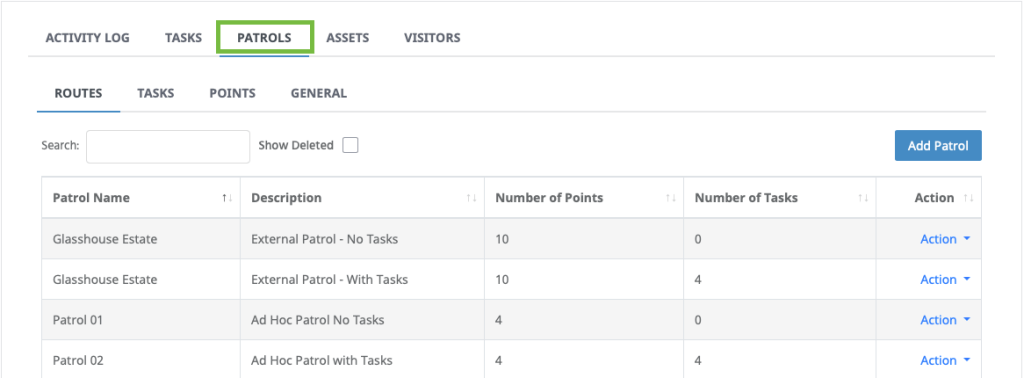

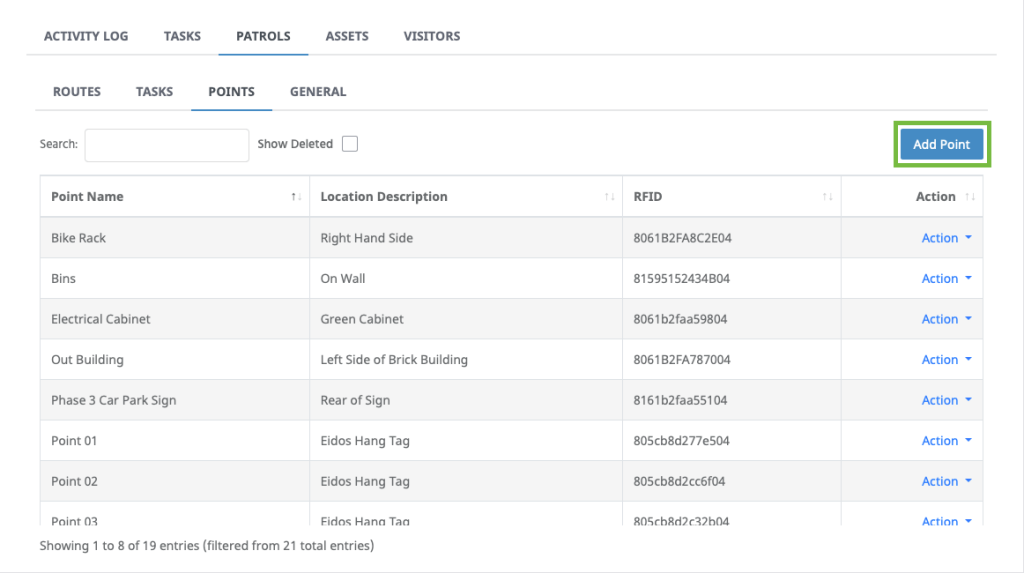

Click On ‘PATROLS’ (see fig 12.3) and ‘Add Point’ (see fig 12.4)
Step 3
Place the cursor in the ‘RFID’ box (see fig 12.5) and scan a point using the NFC reader. The point id code will appear in the box.
Point Name: i.e. Kitchen
Location Description: i.e. Located on door frame.
Positioning Patrol Points
IMPORTANT
Points need to be easily accessible to all members of staff. Where possible try and locate points where they’re not accessible to members of the public in areas such as waiting rooms where they could easily be removed.

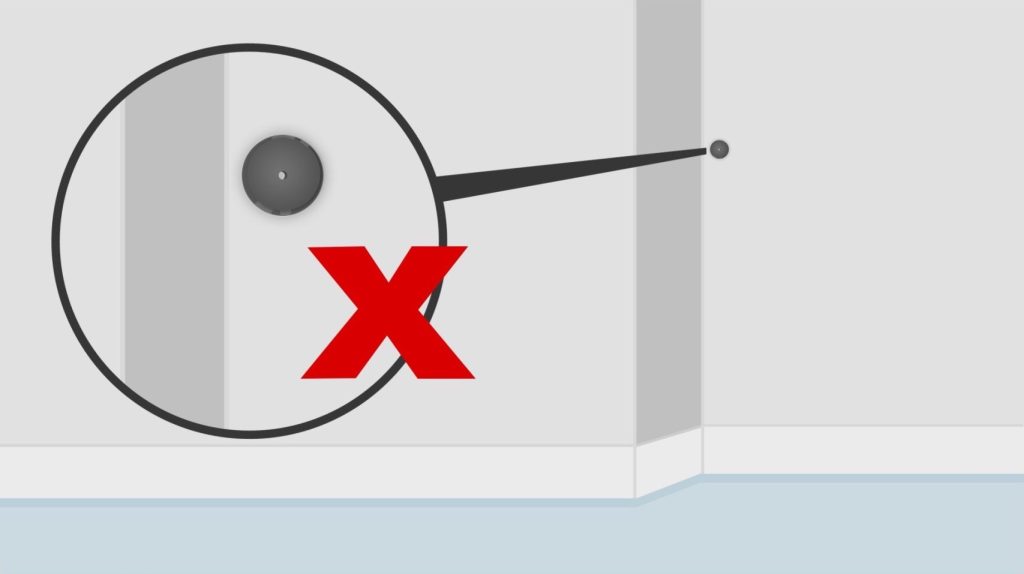

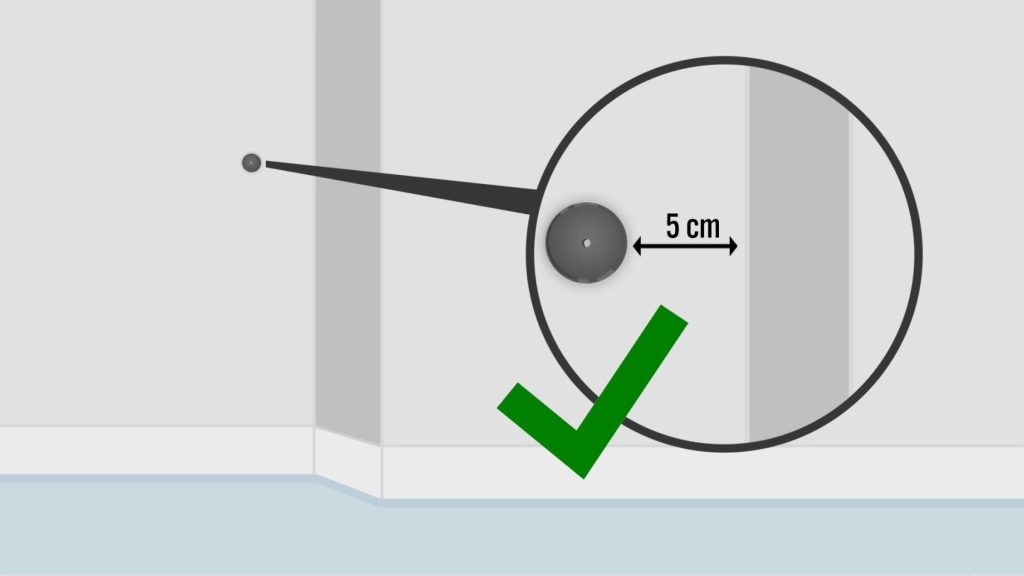

When fitting points, please ensure that you leave enough space around the point to allow the phone to lay flat against it. If fitting points with the adhesive backing, make sure the surface is clean before attaching.
Installing & Updating the Patrol App
To install and update the VeriFi Eidos Patrol app, please use the below button to take you to the Google Play Store.
